Details of Bolus Press CMD4

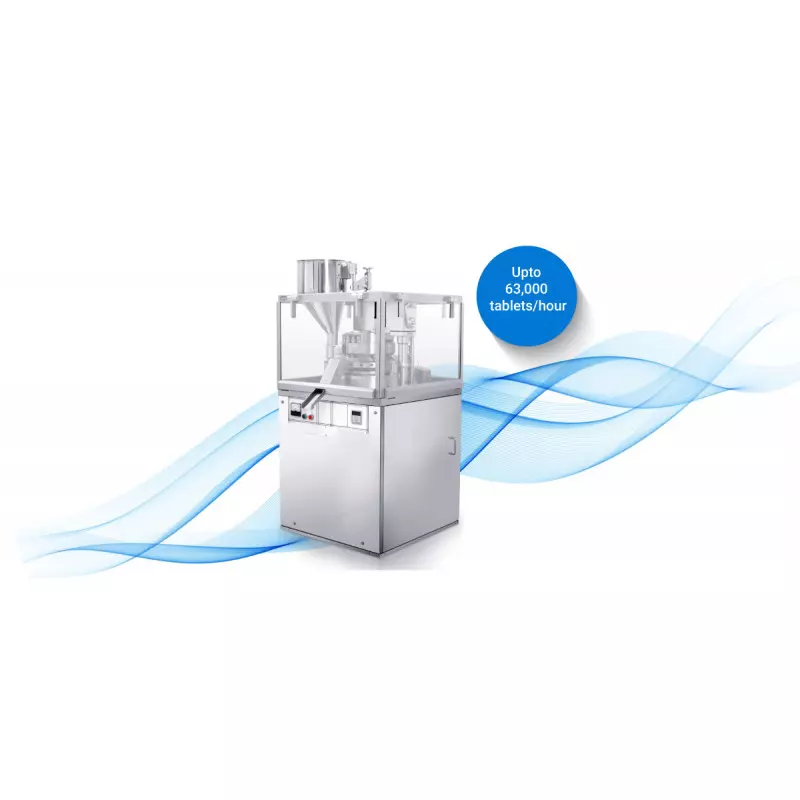

Bolus Press CMD4: Precision Planning for Pilot Batch Production

Our Bolus Press CMD4 stands as a pinnacle of technological advancement in the realm of tablet manufacturing. Optimized specifically for the production of bolus tablets, this machine caters to the unique requirements of the health care and pharmaceutical industries. Its robust construction and specialized features generate high-quality output, making it an extremely valuable asset for pilot batch production.

Primary Features

  • Single Rotary Design: The CMD4 employs a single rotary mechanism, optimizing space and simplifying operations without compromising on performance.
  • cGMP Compliance: Engineered in adherence to current Good Manufacturing Practices, ensuring the highest standards of quality and hygiene.
  • 12-Station Turret: Equipped with a 12-station turret, the CMD4 is capable of producing up to 12,240 tablets per hour, depending on the tablet size and formulation.
  • Special Tooling for Bolus Tablets: Tailored tooling configurations are available to accommodate the specific dimensions and characteristics of bolus tablets.
  • Enhanced Safety Features: The machine incorporates safety interlocks and emergency stop mechanisms to protect operators during the manufacturing process.
  • User-Friendly Interface: A 6” HMI touchscreen interface allows for intuitive operation and easy monitoring of the production parameters.
  • Efficient Lubrication System: An auto lubrication system ensures smooth operation and reduces wear and tear on moving parts.
  • Variable Speed Control: AC variable drives for the main motor and force feeder motors provide flexibility in adjusting the production speed to meet specific requirements.

Technical Specifications

SpecificationDetails
Machine TypeCMD4-12
Number of Stations12
Max Operating Pressure10 Tons
Max Tablet Diameter36 mm
Max Tablet Thickness13 mm
Max Die Fill Depth30 mm
Upper Punch Penetration3 to 6 mm
Main Motor Power3.7 kW (5 hp)
Power Supply220/380/415/480 V, 3 Ph, 50/60 Hz
Overall Dimensions97 cm (W) x 112 cm (D) x 184 cm (H)
Net Weight1214 kg

Offered Product

Bolus Press CMD4

CMD4 Is A Square CGMP Model, Single Rotary Tablet Press With Promising Quality For Pilot Batch Production. Safety, Enhanced Performance, Cleanability And Ease Of Operation Are Its Most Salient Features. It Is An Economic Segment Machine Highly Preferred For Low Investment Start-ups & R&D Operations. CMD4 Is Offered In 20D, 25B, 12DX (Bolus) Turret Configurations.Important Specifications:PLC With Touch Screen 6” HMI AvailableFor Bolus Applications, 12 Station Turret With Spe... Read more
