Roll Compactor 200/50
Roll Compactor 200/50 Details

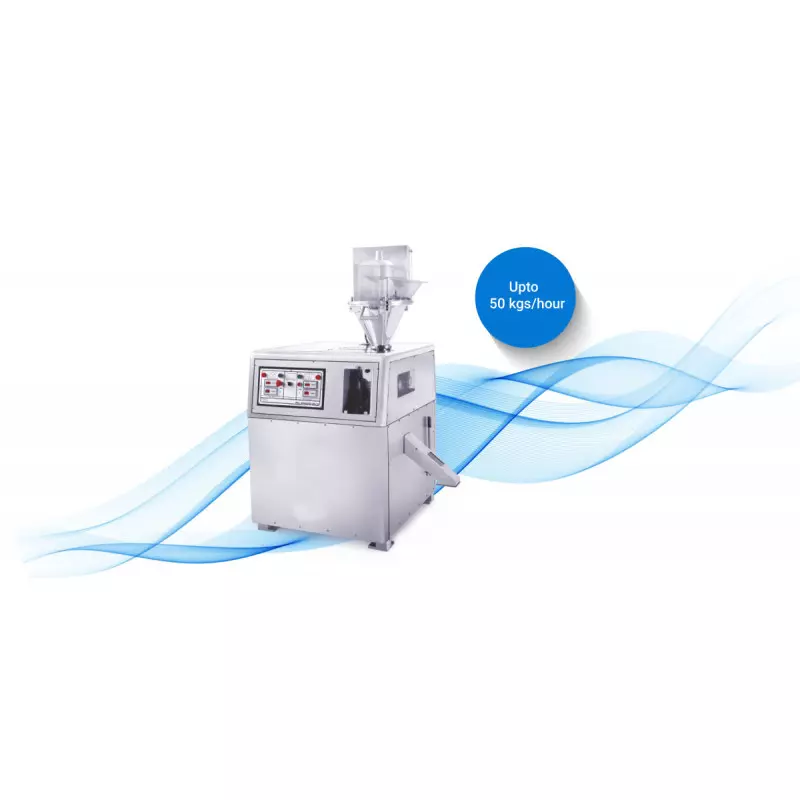

FAMACH Roll Compactor 200/50 is compact and efficient vertical feeding based machine with the rated output of max. 50 kgs/hour.
Important Specifications:
- cGMP Model
- Compacting Roll surface - Corrugated / Knurled / Briquetted / Smooth Options available
- ACVFD for Feed Screw Motor
- PLC control with HMI Touch Screen & Printing Facility
- ACVFD for main motor
- Water-Cooling System
- Air Purging System
TECHNICAL SPECIFICATION
| MACHINE TYPE | CMRC 200/50 |
|---|---|
| Compacting roll size (mm) | 200 Dia. x 50 W. |
| Roll surface (Selection depends upon material characteristics) | Standard (a) Corrugated Additional Options (a) Smooth (b) Knurled (c) Briquetted |
| Max Output (kg / hour) * | 50 |
| Roll Speed (rpm) (By step pulley) | 6 to 23 |
| Feed screw speed (rpm) (Through ACVFD) | 10 to 60 |
| Ele. motor for roll drive (kW / hp) | 3.7 / 5.0 |
| Power consumption (kW / hp) | 4.8 / 6.5 |
| Power supply | 220 / 380 / 415 / 480 V +10%, 3 Ph., 50 / 60 Hz |
| Overall dimensions (cm) | 107 W x 118 D x 195 H |
| Net weight (kg) | 1500 |
