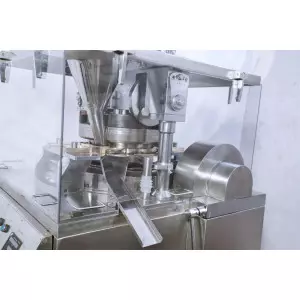

Tablet Press CMB4
Tablet Press CMB4 Details

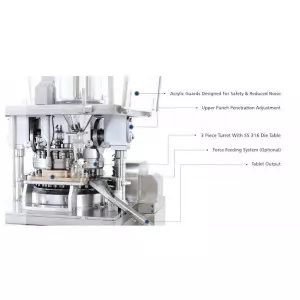

CMB4 is a square cGMP model, Multi-station Rotary tablet press with promising quality for medium batch production. Safety, Enhanced Performance, Cleanability and Ease of Operation are its most salient features. It is an economic segment machine highly preferred for low investment start-ups & R&D Operations. CMB4 is offered in 27D, 35B & 45BB Turret Configurations.
Important Specifications:
- PLC with Touch Screen 6” HMI available
- Bi-Layer Tablet Attachment
- Auto-Lubrication System
- Rotary Force Feeding System
- 3 Pc Turret with 316 die-table
- AC Variable drive for Main Motor and Force Feeder Motors
- Lower Punch Spray Lubrication System for effervescent Tablet Production
- Multi/Combination Tooling of D & B available as option
TECHNICAL SPECIFICATION
| MACHINE TYPE | CMB4-D27 | CMB4-35 | CMB4-45 | |
|---|---|---|---|---|
| No. of station | 27 | 35 | 45 | |
| Type of tooling | D | B | BB | |
| Rated output (tablets / hour)* | 58,320 to 129,600 | 75,600 to 168,000 | 97,200 to 216,000 | |
| Max. Operating pressure (Tons) | 10 | 6.5 | 6.5 | |
| Max. Tablet diameter (mm) | 25 | 16 | 13 | |
| Max. Depth of die fill (mm) | 20 | 17 | 17 | |
| Max. Tablet thickness (mm) | 8 | |||
| Upper punch penetration (mm) | 3 to 6 | |||
| Main ele. motor (kW / hp) | 3.7 / 5.0 | |||
| Power consumption (kW / hp) | 3.7 / 5.0 | |||
| Power supply | 220 / 380 / 415 / 480 V +10%, 3 Ph., 50 / 60 Hz | |||
| Overall dimensions (cm) | 110 W x 129 D x 178 H | |||
| Net weight (kg) | 1483 | |||
Depending upon tooling size & shape and also material characteristics.
We reserve rights of alteration because of technical progress.
